Product Details
＋

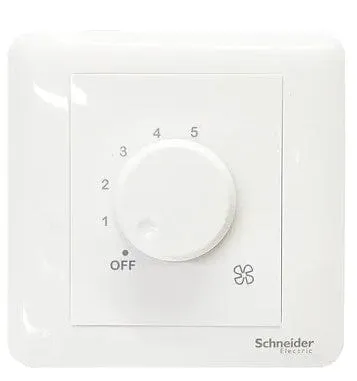

Schneider 100W 220V 1 Gang Fan Controller | Model : A3G31BFC-WE-G2
Specifications :
| Range | Affle Plus |
|---|---|
| Product or component type | Fan controller |
| device presentation | Mechanism |
| Colour tint | White |
| Device mounting | Flush |
|---|---|
| Number of modules | 1 module 53.1 x 46 mm |
| Actuator | Rotary |
| Fixing mode | Clip-in |
| Surface finish | Glossy |
| Dimmer control | 150° rotary setting ON/OFF integrated |
| [Ie] rated operational current | 0.45 A |
| [Ue] rated operational voltage | 220 V AC 50/60 Hz |
| Screwdriver shape | Philips No 2 |
| Clamping connection capacity | 0.5...4 mm² for rigid cable(s) 0.5...4 mm² for stranded cable(s) 0.5...4 mm² for flexible cable(s) |
| Wire stripping length | 12…15 mm |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: cover Polycarbonate: button |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 45.5 mm |
| Embedding depth | 25 mm |
| Net weight | 0.082 kg |
| Ambient air temperature for storage | -5…50 °C |
|---|---|
| Ambient air temperature for operation | 0…50 °C |
| Standards | IEC 60669-2-1 |
| IP degree of protection | IP20 |
| Environmental characteristic | UV resistant |
